Product Overview

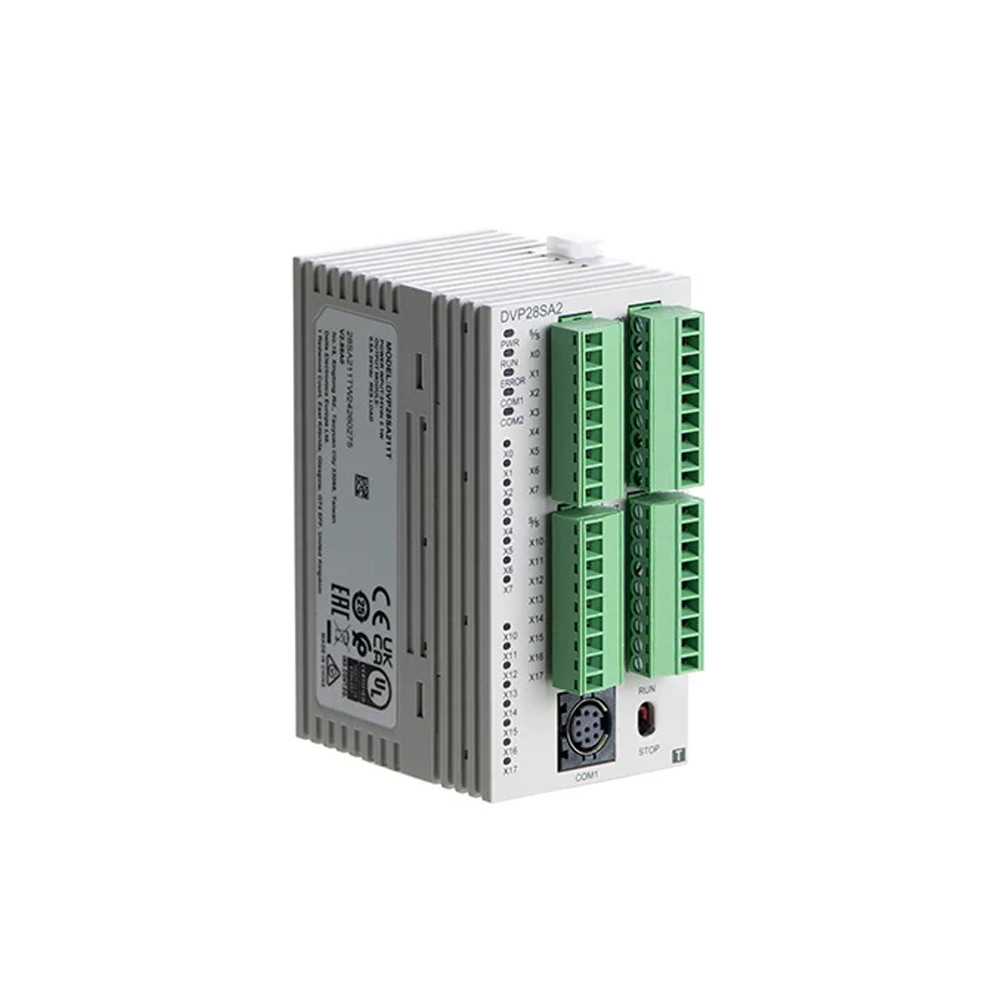

DVP28SA211T is a high-performance slim PLC in the Delta DVP-SA2 series. It offers dense I/O, high-speed processing, and versatile communication in a compact DIN-rail package, suitable for small-to-medium automated machinery and motion control applications.
Key Specifications
- Brand: Delta
- Model: DVP28SA211T
- Series: DVP-SA2 (Slim)
- Total I/O Points: 28
- Digital Input: 16 DI (DC24V, sink/source selectable)
- Digital Output: 12 DO (NPN Transistor, 0.5A/point, 30VDC max)
- Power Supply: DC 24V (20.4–28.8VDC)
- Program Memory: 8k steps
- Built-in Communication: 1×RS-232, 2×RS-485 (Modbus RTU/ASCII, PLC Link)
- High-Speed Counters: 2×100kHz, 6×10kHz, 1×A/B 50kHz
- High-Speed Pulse Output: 4×10kHz
- Max I/O Expansion: 480 pointsDelta
- Mounting: DIN rail
- Operating Temperature: 0°C ~ 55°C
- Protection Grade: IP20
- Dimensions (W×H×D): 46 × 90 × 100 mm
- Weight: ~0.5 kg
Features & Benefits
- High-Speed Motion Control: Transistor outputs support high-speed pulse output for servo/stepper drives.
- Compact & Space-Saving: Slim 46mm width saves cabinet space.
- Dual RS-485 + RS-232: Enables multi-device networking (HMI, drives, sensors).
- Battery-Free Design: Programs/data stored in flash memory; maintenance-free.Delta
- Flexible Expansion: Connects to DVP-S series digital/analog/temp modules.Delta
Applications
- Small CNC machines, servo/stepper motion control
- Packaging, printing, and textile machinery
- Environmental equipment, water treatment, HVAC
- Conveying systems and general industrial automation
