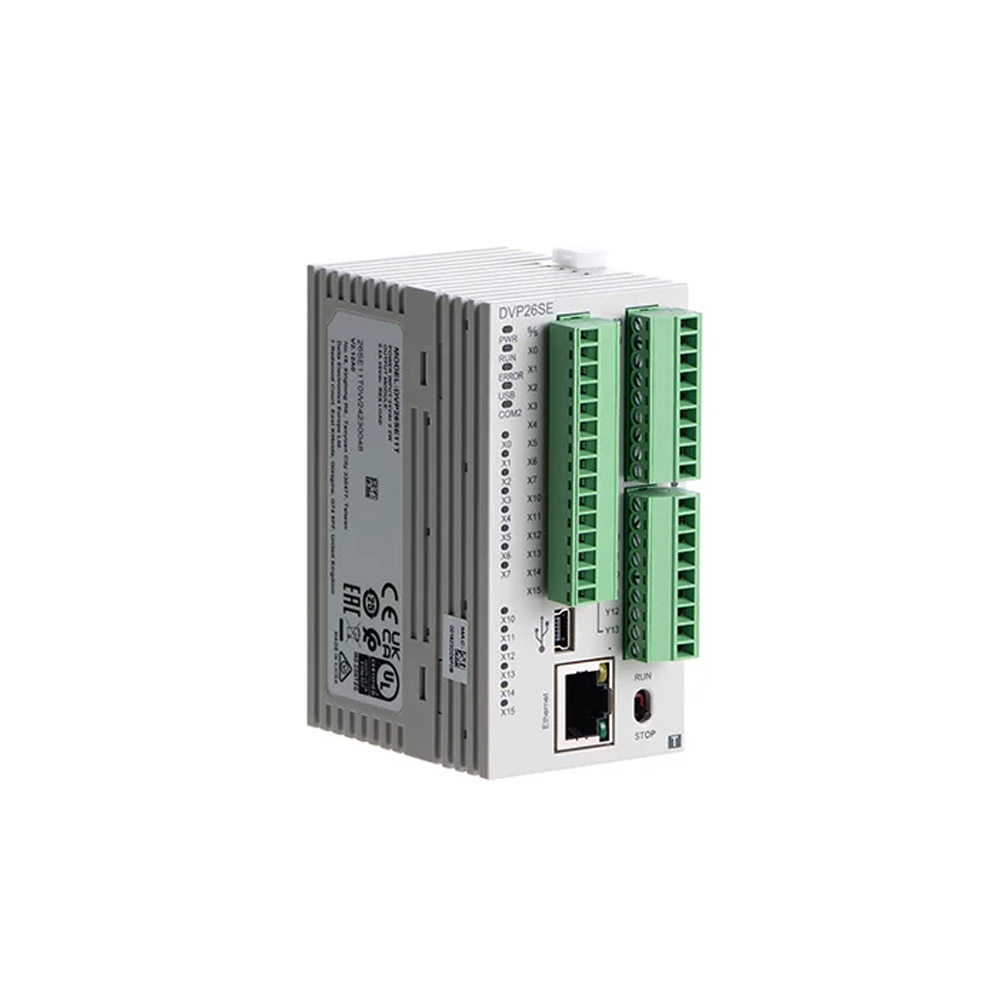

Delta DVP26SE11T DVP-SE Series 26-Point Slim PLC (14DI+12NPN Transistor DO, Ethernet)

Product Overview

Key Specifications

• Brand: Delta
• Model: DVP26SE11T
• Series: DVP-SE (Slim Network)
• Total I/O Points: 26 (14DI+12DO)
  • Digital Input: 14×DC24V (sink/source selectable)
    • High-Speed Counters: 2×100kHz, 6×10kHz, 1×AB-phase 50kHz
  • Digital Output: 12×NPN Transistor (0.5A/point, 30VDC max)
    • Pulse Output: 2×100kHz (Y0/Y1), 2×10kHz (Y2/Y3)
• Power Supply: DC24V (20.4~28.8V, reverse polarity protected)
• Program Memory: 16k steps
• Data Register: 12k words
• Communication: 1×Ethernet (Modbus TCP/Ethernet/IP), 2×RS-485 (Modbus RTU/ASCII), 1×Mini USB (programming)
• Dimensions (W×H×D): 70 × 90 × 60 mm
• Weight: ~350g
• Operating Temperature: 0°C ~ 55°C
• Protection Grade: IP20
• Expansion: Supports DVP-S series left/right modules (max 512 I/O)

Features & Benefits

• Rich Communication: Ethernet+Dual RS-485+USB for multi-network integration.
• NPN Transistor Output: Supports high-speed switching (no contact wear) for servo/stepper drives.
• High-Speed Pulse: 100kHz for precise motion control (stepper/servo drives).
• IP Filter: Built-in firewall for network security.
• Remote I/O: Supports distributed control (building automation).
• Battery-Free: Flash memory for programs/data, maintenance-free.
• 32-bit CPU: Fast processing (LD: 0.6μs, MOV: 2μs)

Applications

• Mid-size high-speed motion control (stepper/servo)
• Remote monitoring & control (Ethernet)
• Packaging machinery with fast switching
• Building automation (HVAC, lighting)
• Environmental monitoring
• General automation requiring networking & high I/O count
