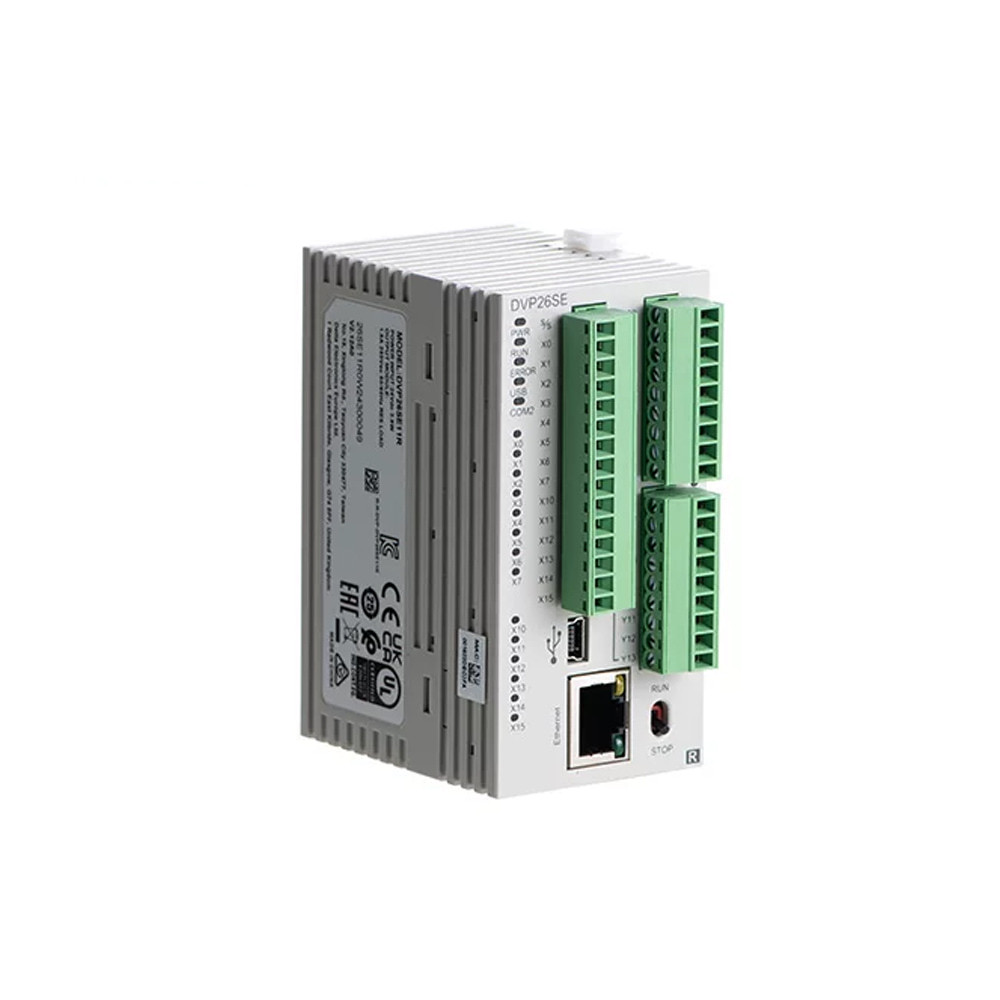

Delta DVP26SE11R DVP-SE Series 26-Point Slim PLC (14DI+12Relay DO, Ethernet)

Product Overview

Key Specifications

• Brand: Delta
• Model: DVP26SE11R
• Series: DVP-SE (Slim Network)
• Total I/O Points: 26 (14DI+12DO)
  • Digital Input: 14×DC24V (sink/source selectable)
    • High-Speed Counters: 2×100kHz, 6×10kHz, 1×AB-phase 50kHz
  • Digital Output: 12×Relay (2A/250VAC, resistive load)
    • Pulse Output: 2×100kHz, 2×10kHz
• Power Supply: DC24V (20.4~28.8V, reverse polarity protected)
• Program Memory: 16k steps
• Data Register: 12k words
• Communication: 1×Ethernet (Modbus TCP/Ethernet/IP), 1×RS-232, 1×RS-485 (Modbus RTU/ASCII), 1×Mini USB (programming)
• Dimensions (W×H×D): 70 × 90 × 60 mm
• Weight: ~350g
• Operating Temperature: 0°C ~ 55°C
• Protection Grade: IP20
• Expansion: Supports DVP-S series left/right modules (max 512 I/O)

Features & Benefits

• Rich Communication: Ethernet+RS-232+RS-485+USB for multi-network integration。
• Relay Output: Handles high-current loads (contactors, valves) with 2A rating。
• High-Speed Pulse: 100kHz for motion control (stepper/servo drives)。
• IP Filter: Built-in firewall for network security。
• Remote I/O: Supports distributed control (building automation)。
• Battery-Free: Flash memory for programs/data, maintenance-free。
• 32-bit CPU: Fast processing (LD: 0.6μs, MOV: 2μs)。

Applications

• Mid-size motion control (stepper/servo)
• Building automation (HVAC, lighting)
• Remote monitoring & control (Ethernet)
• Packaging machinery
• Environmental monitoring
• General automation requiring networking & high I/O count
