Product Overview

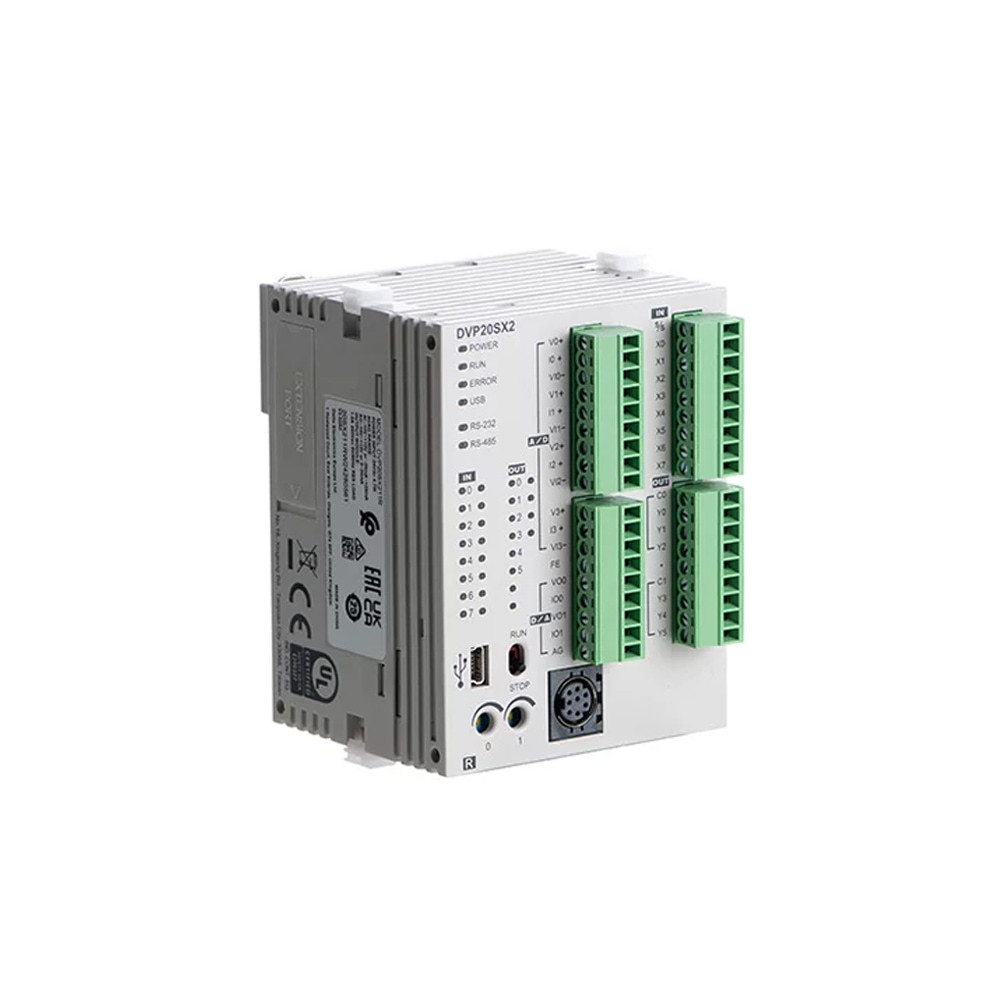

DVP20SX211R belongs to Delta’s DVP-SX2 slim series, a cost-effective all-in-one PLC combining digital and analog I/O. It supports 2-axis interpolation and PID auto-tuning, suitable for space-constrained applications requiring both motion and process control.
Key Specifications
- Brand: Delta
- Model: DVP20SX211R
- Series: DVP-SX2 (Slim Mixed I/O)
- Total I/O Points: 20 (8DI+6DO+4AI+2AO)
- Digital Input: 8×DC24V (sink/source selectable)
- Digital Output: 6×Relay (2A/250VAC, resistive load)
- Analog Input: 4CH, 12-bit, -10~10V / 4~20mA
- Analog Output: 2CH, 12-bit, -10~10V / 4~20mA
- Power Supply: DC24V (20.4~28.8V, reverse polarity protected)
- Program Memory: 16k steps
- Data Register: 10k words
- Communication: 1×RS-232, 1×RS-485 (Modbus RTU/ASCII, PLC Link), 1×Mini USB (programming)
- High-Speed I/O:
- Counters: 2×100kHz, 6×10kHz
- Pulse Output: 2×100kHz (Y0/Y1), 2×10kHz (Y2/Y3)
- Dimensions (W×H×D): 45 × 90 × 60 mm
- Weight: ~220g
- Operating Temperature: 0°C ~ 55°C
- Protection Grade: IP20
Features & Benefits
- All-in-One Mixed I/O: Integrates 8DI+6DO+4AI+2AO (12-bit) to save cost and cabinet space。
- Relay Output: Handles high-current loads (contactors, valves) with 2A rating。
- High-Speed Pulse & 2-Axis Interpolation: Supports 100kHz motion for stepper/servo drives and simple CNC applications。
- PID Auto-Tuning: Built-in PID for temperature/pressure/flow control (up to 16 loops)。
- Battery-Free Design: Programs stored in flash; maintenance-free。
- Compact & Slim: 45mm width fits tight enclosures。
Applications
- Temperature/humidity PID control
- Pressure/flow monitoring & regulation
- Small servo/stepper motion control (2-axis)
- Packaging machinery with analog sensors
- Environmental monitoring equipment
- General automation requiring analog I/O
