Product Overview

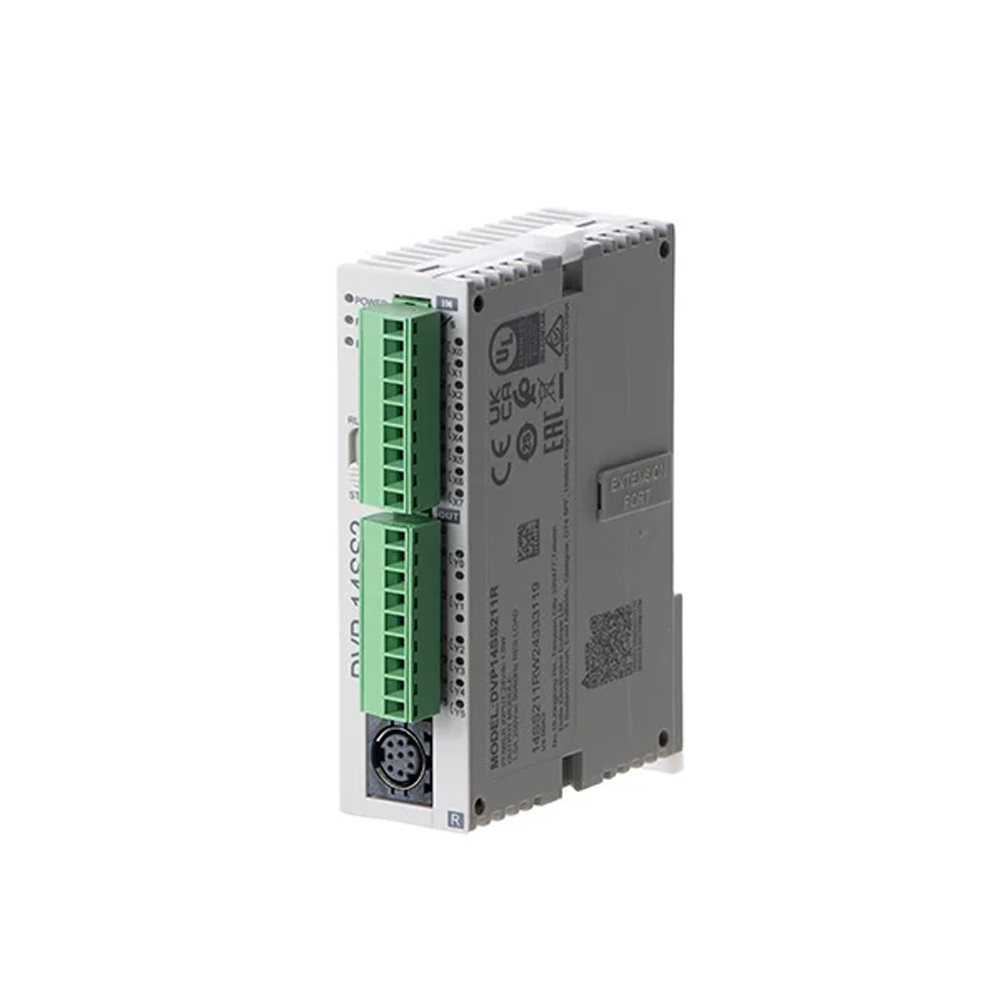

DVP14SS211R is a cost-effective, slim PLC from Delta’s second-generation DVP-SS2 line, optimized for small-scale automation, motion control, and OEM machines. It offers fast processing, rich I/O, and built-in communication in a DIN-rail mountable package.
Key Specifications
- Brand: Delta
- Series: DVP-SS2
- Model: DVP14SS211R
- I/O Configuration: 14 points total (8DI / 6DO Relay)
- Power Supply: 24VDC (±10%)
- Program Memory: 8k steps (Flash, no battery needed)
- Data Register: 5k words
- Execution Speed: LD: 0.54μs; MOV: 3.4μs
- High-Speed Counters: 8 points (4×20kHz + 4×10kHz)
- Pulse Output: 4×10kHz (Y0~Y3, independent)
- Communication:
- RS-232 (built-in)
- RS-485 (built-in, Modbus ASCII/RTU, master/slave, PLC Link)
- Expansion: Max 480 I/O points (with DVP-S series modules)
- Dimensions (H×W×D): 90 × 32 × 52 mm
- Weight: ~150 g
- Mounting: DIN rail
- Environment: 0~55°C, 5~95% RH (non-condensing)
Features & Benefits
- Slim & Compact: 32mm width, saves cabinet space
- Relay Outputs: 6×relay (5A/250VAC), ideal for switching motors/valves
- Fast Processing: 0.54μs LD speed for quick logic/motion tasks
- Integrated Comms: RS-232/485 + Modbus, easy HMI/drive connection
- Motion Ready: 4×10kHz pulse output for simple positioning
- Battery-Free: Flash memory retains program/data without backup battery
Applications
- Small conveyor systems
- Packaging machines
- Textile equipment (spinning, winding)
- Electronic assembly lines
- HVAC & pump control
- General OEM machine automation
