Product Overview

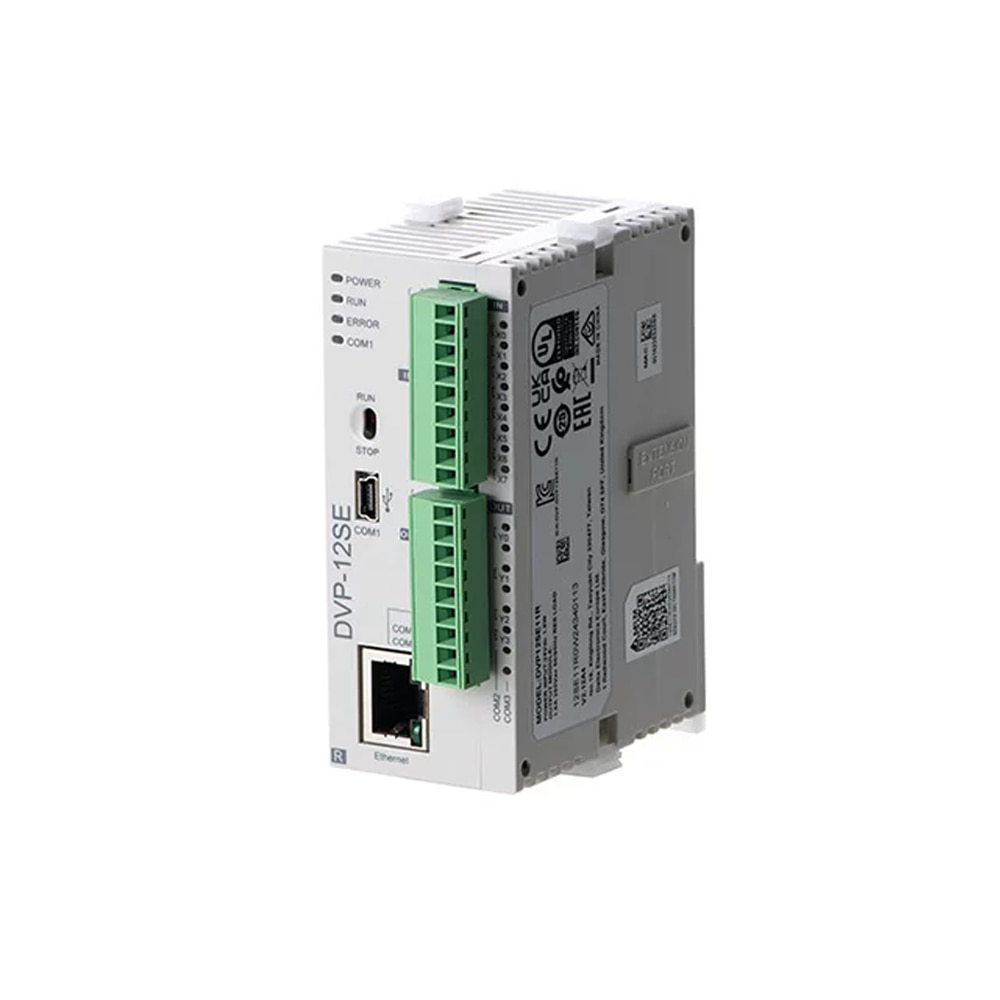

DVP12SE11R belongs to Delta’s DVP-SE slim series, a cost-effective network PLC with rich communication ports. It supports remote I/O and Ethernet/IP, suitable for distributed control and space-limited applications.
Key Specifications
- Brand: Delta
- Model: DVP12SE11R
- Series: DVP-SE (Slim Network)
- Total I/O Points: 12 (8DI+4DO)
- Digital Input: 8×DC24V (sink/source selectable)
- Digital Output: 4×Relay (2A/250VAC, resistive load)
- Power Supply: DC24V (20.4~28.8V, reverse polarity protected)
- Program Memory: 16k steps
- Data Register: 12k words
- Communication: 1×Ethernet (Modbus TCP/Ethernet/IP), 2×RS-485 (Modbus RTU/ASCII), 1×Mini USB (programming)
- High-Speed I/O:
- Counters: 2×100kHz, 2×10kHz
- Pulse Output: 2×100kHz (Y0/Y1)
- Dimensions (W×H×D): 45 × 90 × 60 mm
- Weight: ~230g
- Operating Temperature: 0°C ~ 55°C
- Protection Grade: IP20
- Expansion: Supports DVP-S series left/right modules (max 480 I/O)
Features & Benefits
- Rich Communication: Ethernet+Dual RS-485+USB for multi-network integration。
- Relay Output: Handles high-current loads (contactors, valves) with 2A rating。
- High-Speed Pulse: 100kHz for basic motion control (stepper drives)。
- IP Filter: Built-in firewall for network security。
- Remote I/O: Supports distributed control (building automation)。
- Battery-Free: Flash memory for programs/data, maintenance-free。
- Compact & Slim: 45mm width fits tight enclosures。
Applications
- Building automation (HVAC, lighting)
- Remote monitoring & control (Ethernet)
- Small motion control (stepper motors)
- Packaging machinery
- Environmental monitoring
- General automation requiring networking
