Product Overview

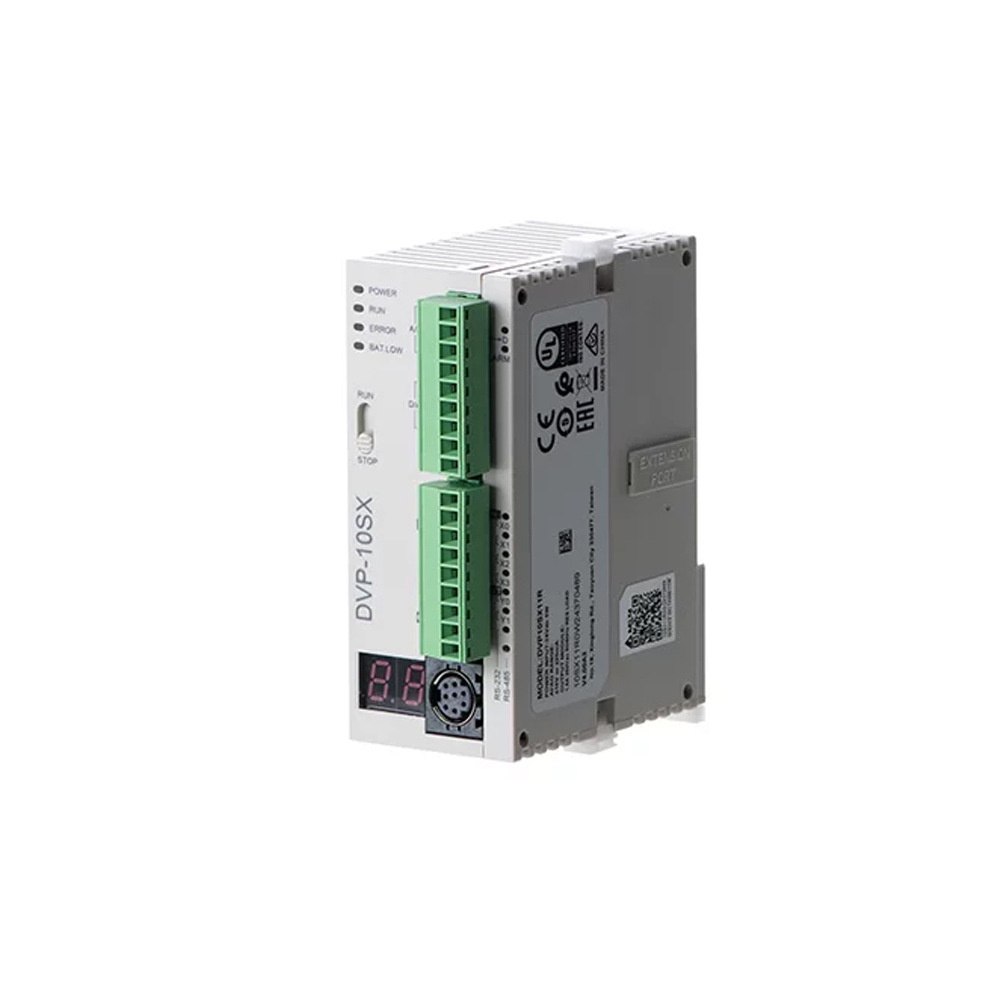

DVP10SX11R belongs to Delta’s DVP-SX slim series, a cost-effective all-in-one PLC combining digital and analog I/O in a compact 25.2mm width. It eliminates the need for separate analog modules, perfect for space-constrained applications requiring PID control and signal processing.
Key Specifications
- Brand: Delta
- Model: DVP10SX11R
- Series: DVP-SX (Slim Mixed I/O)
- Total I/O Points: 10 (4DI+2DO+2AI+2AO)
- Digital Input: 4×DC24V (sink/source selectable)
- Digital Output: 2×Relay (2A/250VAC, resistive load)
- Analog Input: 2CH, 12-bit, -10~10V / -20~20mA / 4~20mA
- Analog Output: 2CH, 12-bit, -10~10V / 0~20mA / 4~20mA
- Power Supply: DC24V (20.4~28.8V, reverse polarity protected)
- Program Memory: 16k steps
- Data Register: 10k words
- Communication: 1×RS-232, 1×RS-485 (Modbus RTU/ASCII, PLC Link)
- High-Speed I/O:
- Counters: 2×100kHz, 6×10kHz
- Pulse Output: 2×100kHz, 2×10kHz
- Display: Built-in 2-digit 7-segment LED (station ID/error code)
- Dimensions (W×H×D): 25.2 × 90 × 60 mm
- Weight: ~170g
- Operating Temperature: 0°C ~ 55°C
- Protection Grade: IP20
Features & Benefits
- All-in-One Mixed I/O: Integrates digital + analog (12-bit) to save cost and cabinet space.
- Relay Output: Handles high-current loads (contactors, valves) with 2A rating.
- High-Speed Pulse: Supports 100kHz motion control for stepper/servo drives.
- PID Auto-Tuning: Built-in PID for temperature/pressure/flow control (no extra modules).
- Battery-Free Design: Programs stored in flash; maintenance-free.
- Compact & Slim: 25.2mm width fits tight enclosures.
Applications
- Temperature/humidity PID control
- Pressure/flow monitoring & regulation
- Small HVAC systems
- Packaging machinery with analog sensors
- Environmental monitoring equipment
- General automation requiring analog I/O
