Product Overview

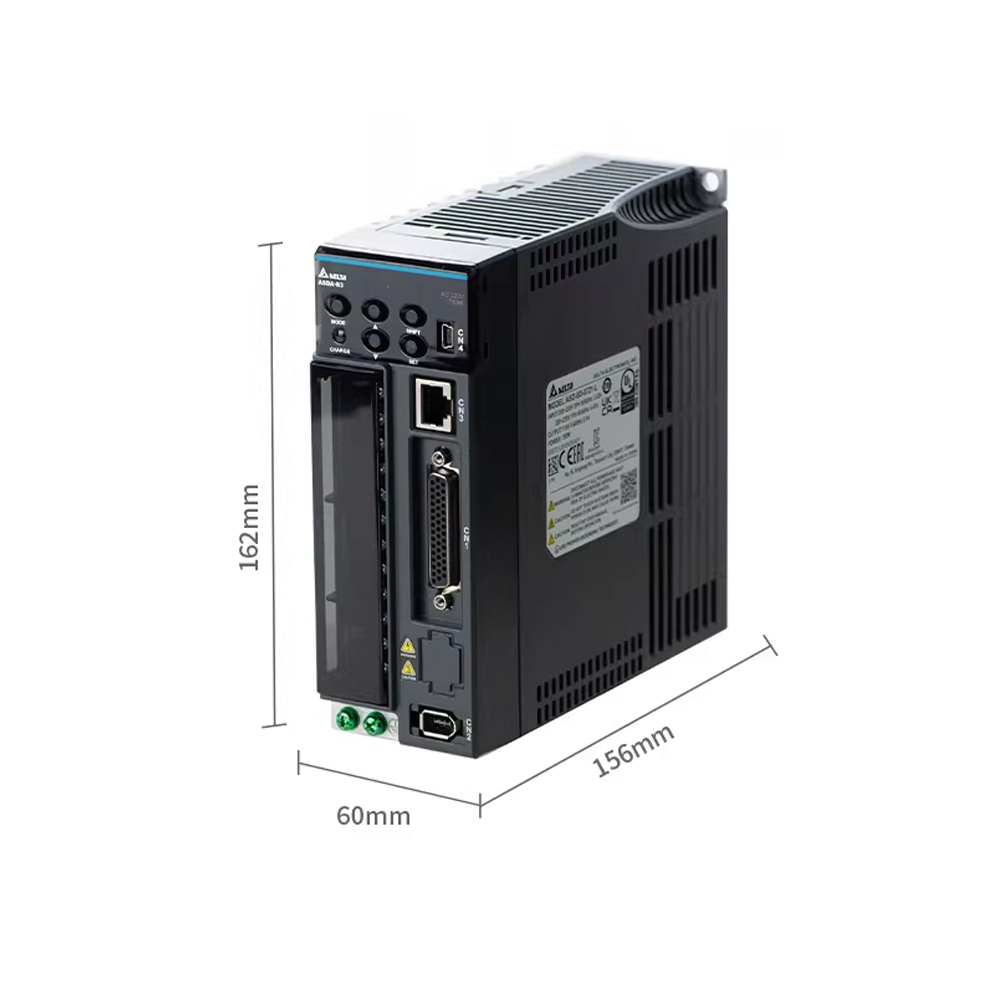

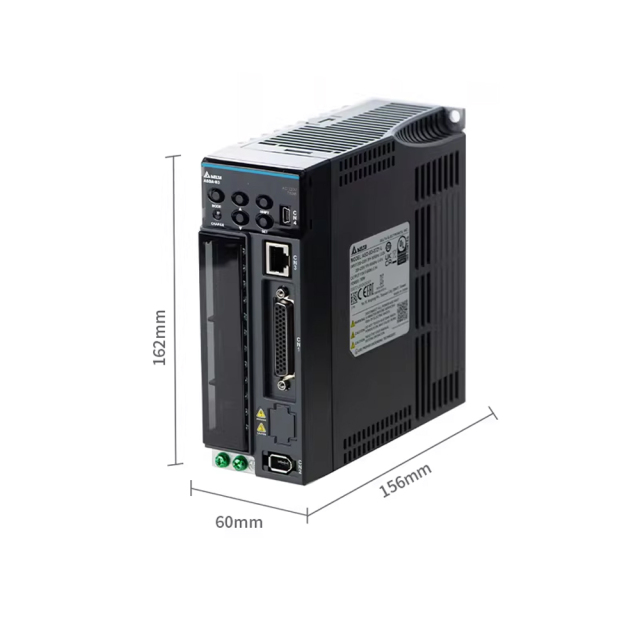

The ASD-B3-0221-L is a pulse control type servo drive from Delta ASDA-B3 series, designed for 200W servo motors. It supports 200~230V single/three-phase input, with expanded 9DI/6DO I/O terminals and STO safety function. It features high positioning accuracy, fast dynamic response and stable performance, suitable for small and medium precision automation equipment.
Key Specifications
- Brand: Delta
- Series: ASDA-B3
- Model: ASD-B3-0221-L
- Rated Power: 200W
- Input Voltage: 200~230V AC 1/3PH 50/60Hz
- Control Type: Pulse & Direction (PT mode) / AB Phase
- Max Pulse Input: 4Mpps
- I/O Configuration: 9DI, 6DO (expansion type)
- Encoder Support: Incremental 2500ppr
- Safety Function: STO (Safe Torque Off)
- Protection Class: IP20
- Cooling: Natural cooling
- Communication: RS-485, USB
- Matching Motor: ECM-A3, ECM-B3 series 200W
- Weight: 0.8kg
Features & Benefits
- Standard pulse control mode, easy to connect with PLC and motion controller
- Expanded 9DI/6DO I/O for more flexible wiring and logic control
- High bandwidth and fast response for precise positioning control
- Comprehensive protections: overcurrent, overvoltage, overload, overheat, etc.
- Compact structure, easy installation and debugging
- Built-in STO function to enhance equipment operation safety
Applications
Widely used in 3C assembly, small packaging machines, labeling machines, precision positioning platforms, semiconductor handling, medical devices and other small power precision motion control occasions.
