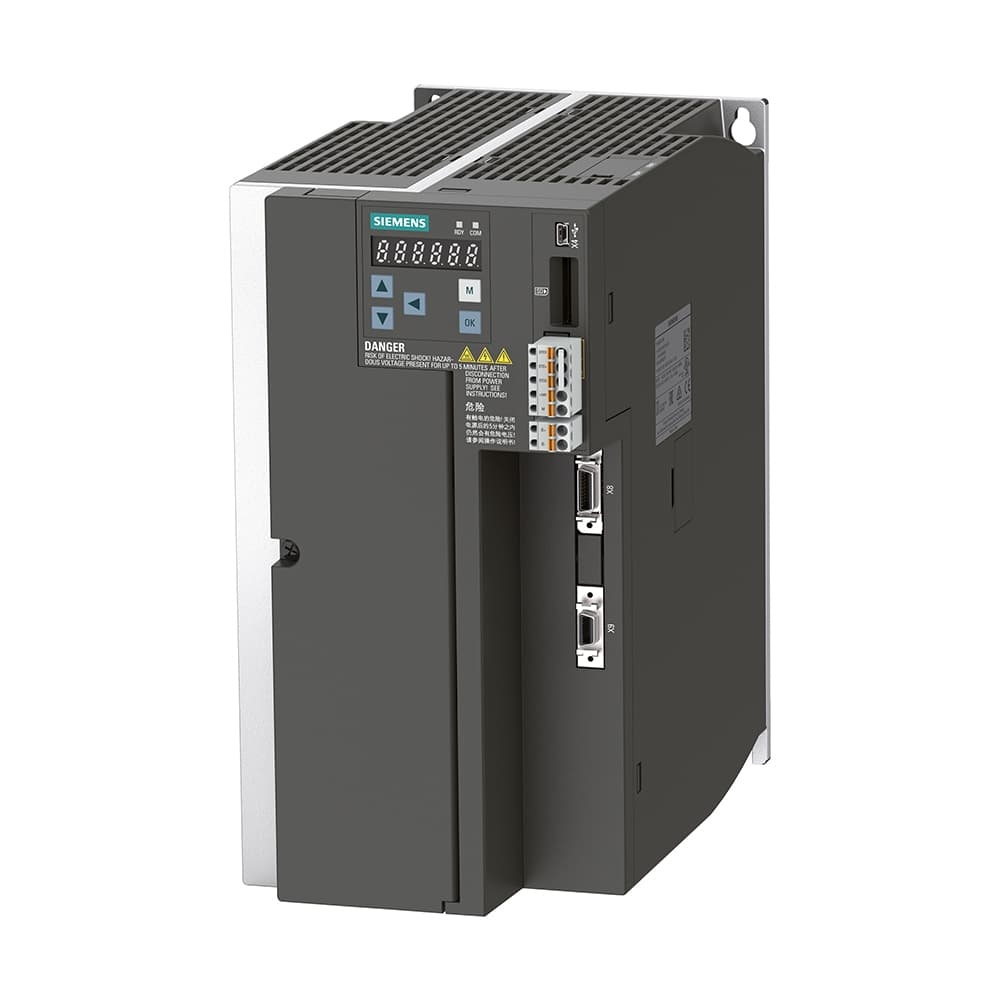

6SL3210-5FE15-0UF0 Siemens SINAMICS V90 Servo Drive
Product Overview
The 6SL3210-5FE15-0UF0 is a high-performance PROFINET version servo drive from the Siemens SINAMICS V90 series, designed for high-power industrial automation applications requiring precise and dynamic motion control. It features a rated output power of 5.0kW (supports 5.0/5.5kW motors), supports 380-480V AC three-phase power input with a tolerance of -15%/+10%, and integrates a PROFINET interface for seamless integration with industrial control systems. With a robust Size C frame design, strong performance and reliable operation, it is ideal for heavy-duty high-power precision machinery.
Key Specifications
- Brand: Siemens
- Series: SINAMICS V90
- Model: 6SL3210-5FE15-0UF0
- Rated Output Power: 5.0kW
- Supported Motor Power: 5.0/5.5kW
- Input Voltage: 380-480V AC, 3-phase (-15%/+10%)
- Input Frequency: 45-66Hz
- Rated Input Current: 15.8A
- Output Voltage: 0 – Input Voltage
- Rated Output Current: 12.6A
- Max Output Current: 37.8A
- Output Frequency: 0-330Hz
- Communication Interface: PROFINET RT (RJ45, 2 ports)
- Control Modes: Position control, Speed control, Torque control
- Safety Function: STO (Safe Torque Off), complies with SIL 2/PL d
- Cooling Method: Fan cooling
- Protection Class: IP20 / UL open type
- Frame Size: Size C (FSC)
- Installation: DIN Rail Mount
- Dimensions (WxHxD): 140x260x240mm
- Weight: 7.2kg
- Digital I/O: 4 DI, 2 DO
- Integrated Braking Resistor: Yes
Features & Benefits
- Built-in PROFINET interface for high-speed, real-time industrial communication with SIMATIC PLC systems, supporting fast data exchange and diagnostics.
- Multiple control modes (position, speed, torque) to meet diverse motion control requirements in heavy-duty industrial scenarios.
- High positioning accuracy and fast dynamic response for demanding high-power precision machinery applications.
- Size C frame design (140x260x240mm) for stable installation in control cabinets.
- Integrated STO safety function to prevent unexpected motor movement, ensuring safe equipment operation.
- Built-in braking resistor for efficient regeneration energy absorption, reducing external component needs.
- Fan cooling design for enhanced heat dissipation, supporting continuous high-load operation.
- Comprehensive protection features (overload, overvoltage, short circuit, over temperature) for long-term stable performance.
- Excellent compatibility with Siemens automation systems and third-party devices, supporting V-ASSISTANT software for easy commissioning and parameter setting.
Applications
Widely used in high-power packaging machinery, electronic manufacturing equipment, assembly lines, material handling systems, printing machinery, woodworking equipment, textile machinery, machine tools, robotics and other heavy-duty industrial automation projects worldwide.
