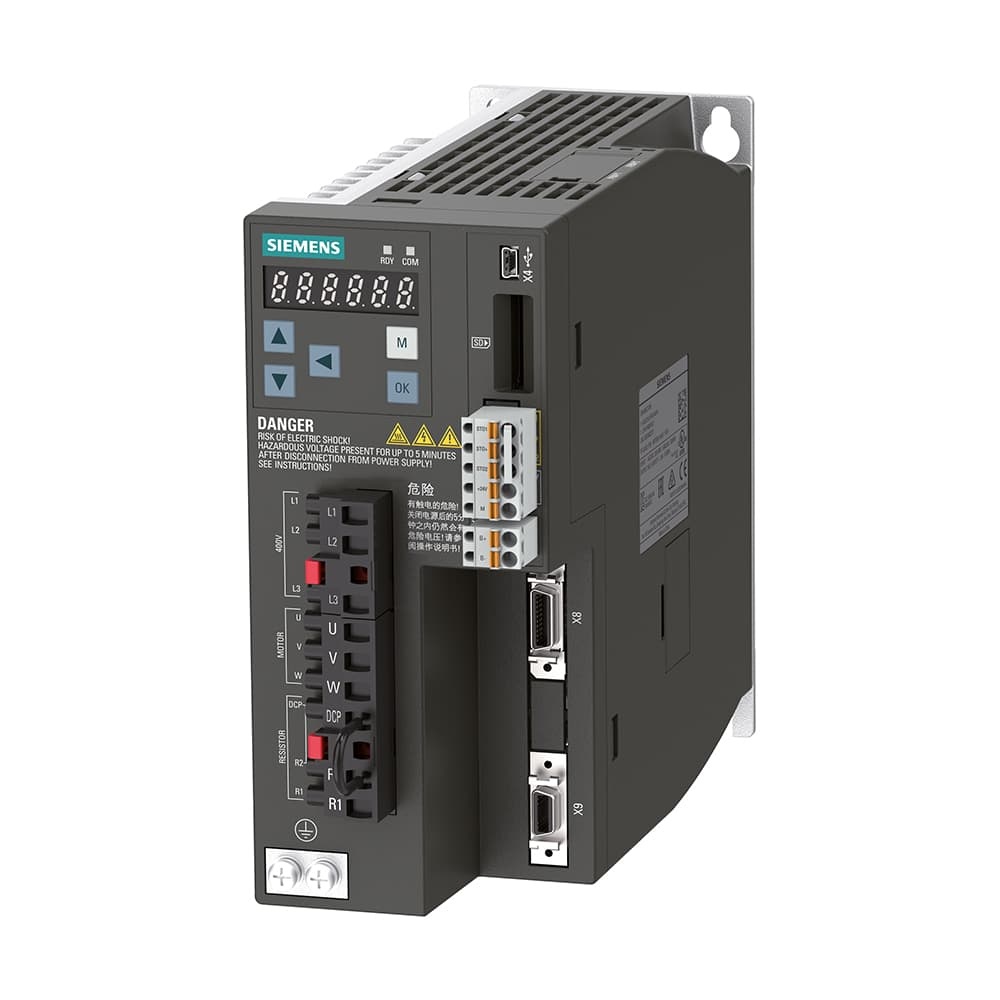

6SL3210-5FE10-8UF0 Siemens SINAMICS V90 Servo Drive
Product Overview
The 6SL3210-5FE10-8UF0 is a high-performance servo drive from the Siemens SINAMICS V90 series, designed for low-to-medium power industrial automation applications requiring precise and dynamic motion control. It features a rated output power of 0.75kW, supports 380-480V AC three-phase power input, and integrates PROFINET communication for seamless integration with industrial control systems. With robust performance, compact design and reliable operation, it is ideal for a wide range of precision machinery.
Key Specifications
- Brand: Siemens
- Series: SINAMICS V90
- Model: 6SL3210-5FE10-8UF0
- Rated Output Power: 0.75kW (750W)
- Input Voltage: 380-480V AC, 3-phase (-15%/+10%)
- Input Frequency: 45-66Hz
- Input Current: 2.6A
- Output Current: 2.1A (Rated), 6.3A (Max)
- Output Frequency: 0-330Hz
- Communication Interface: PROFINET RT (RJ45, 2 ports)
- Control Modes: Position control, Speed control, Torque control
- Safety Function: STO (Safe Torque Off), complies with SIL 2/PL d
- Cooling Method: Fan cooling
- Protection Class: IP20 / UL open type
- Installation: DIN Rail Mount (FSA frame)
- Dimensions (WxHxD): 80x180x200mm
- Weight: 1.85kg
- Digital I/O: 4 DI, 2 DO
- Integrated Braking Resistor: Yes
Features & Benefits
- Built-in PROFINET interface for high-speed, real-time industrial communication with PLC systems, supporting fast data exchange and diagnostics.
- Multiple control modes (position, speed, torque) to meet diverse motion control requirements in various industrial scenarios.
- High positioning accuracy and fast dynamic response for demanding precision machinery applications.
- Compact FSA frame design (80x180x200mm) for easy installation and space-saving in control cabinets.
- Integrated STO safety function to prevent unexpected motor movement, ensuring safe equipment operation.
- Built-in braking resistor for efficient regeneration energy absorption, reducing external component needs.
- Comprehensive protection features (overload, overvoltage, short circuit, over temperature) for long-term stable performance.
- Excellent compatibility with Siemens automation systems and third-party devices, supporting V-ASSISTANT software for easy commissioning and parameter setting.
Applications
Widely used in small and medium-sized packaging machinery, electronic manufacturing equipment, assembly lines, material handling systems, printing machinery, woodworking equipment and other low-to-medium power industrial automation projects worldwide.
