Product Overview

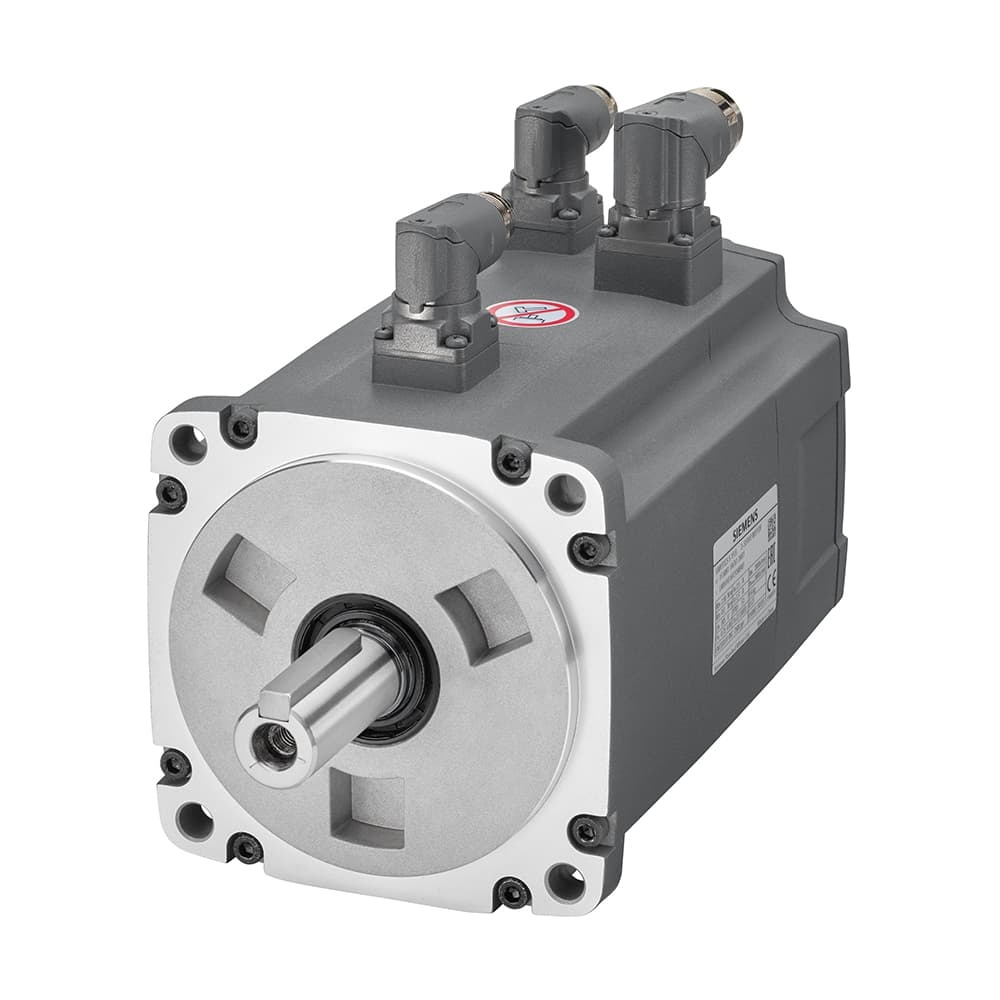

The 1FL6096-1AC61-2AA1 is a high-inertia permanent-magnet synchronous servo motor from Siemens SIMOTICS S-1FL6 series, perfectly matched with SINAMICS V90 and V70 400V servo drives. It features 7kW rated power, 400V 3-phase input, 2000rpm rated speed and 33.4Nm rated torque, with high-precision incremental encoder and IP65 protection, suitable for heavy-duty and stable motion control applications.
Key Specifications
- Brand: Siemens
- Series: SIMOTICS S-1FL6
- Model: 1FL6096-1AC61-2AA1
- Rated Power: 7.0kW
- Voltage: 400V AC 3-phase
- Rated Speed: 2000rpm
- Max Speed: 2000rpm
- Rated Torque: 33.4Nm
- Max Torque: 90.0Nm
- Static Torque: 40.0Nm
- Rated Current: 13.2A
- Max Current: 35.6A
- Encoder: Incremental 2500ppr (13-bit TTL)
- Holding Brake: No
- Inertia Type: High Inertia
- Protection Class: IP65 (with sealing ring)
- Cooling: Natural cooling
- Shaft: Key shaft (35mm diameter, 90mm shaft height)
- Moment of Inertia: 134.3 kgcm²
- Weight: 29.0kg
- Mounting: IM B5/IM V1/IM V3
- Thermal Class: B (130°C)
- Matching Drive: SINAMICS V90, SINAMICS V70
- Ambient Temp: 0–40°C (no condensation)
Features & Benefits
- High inertia design for ultra-stable torque output and minimal speed ripple, ideal for heavy-load scenarios
- Excellent dynamic response and high positioning accuracy for precise motion control
- IP65 protection with sealing ring against dust and water splashes for harsh industrial environments
- Natural cooling for energy efficiency and reliable long-term operation
- Rotatable angular connector for flexible wiring installation
- Perfect compatibility with Siemens V90 and V70 servo drives for plug-and-play setup
- CE and EAC certified for global industrial applications
Applications
Widely used in metal forming machinery, packaging lines, material handling systems, printing machines, winding/unwinding systems, rotary tables, heavy-duty conveyors and other high-torque, stable motion control scenarios.
