Product Overview

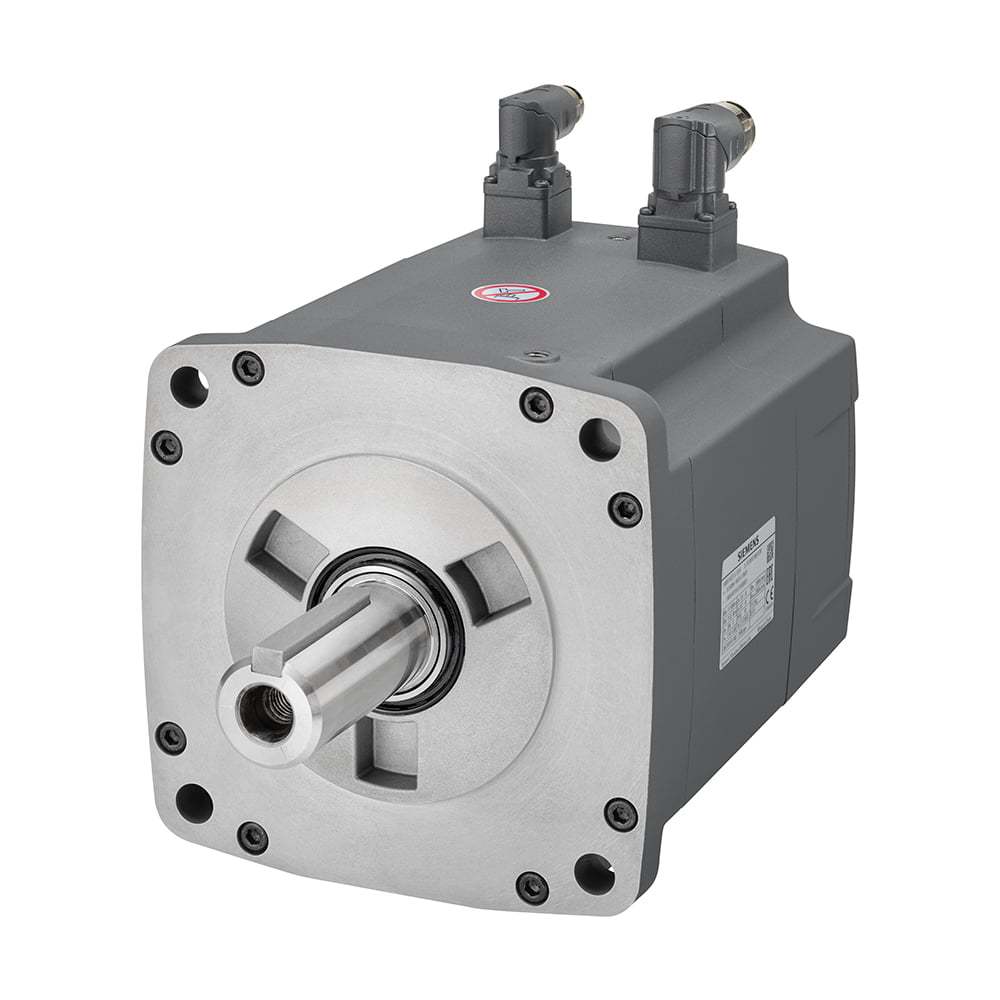

The 1FL6090-1AC61-2AA1 is a high-inertia servo motor from Siemens SIMOTICS S-1FL6 series, perfectly matched with SINAMICS V90 400V servo drives. It features 2.5kW rated power, 400V 3-phase input, 2000rpm rated speed and 11.9Nm rated torque, with high precision incremental encoder and IP65 protection, suitable for stable and heavy-duty motion control applications.
Key Specifications
- Brand: Siemens
- Series: SIMOTICS S-1FL6
- Model: 1FL6090-1AC61-2AA1
- Rated Power: 2.5kW
- Voltage: 400V AC 3-phase
- Rated Speed: 2000rpm
- Max Speed: 3000rpm
- Rated Torque: 11.9Nm
- Max Torque: 35.7Nm
- Rated Current: 7.8A
- Max Current: 23.4A
- Encoder: Incremental 2500ppr
- Holding Brake: No
- Inertia Type: High Inertia
- Protection Class: IP65
- Cooling: Natural cooling
- Shaft: Key shaft (35mm diameter, 90mm shaft height)
- Weight: 19.8kg
- Mounting: IM B5/IM V1/IM V3
- Matching Drive: SINAMICS V90 (400V series)
Features & Benefits
- High inertia design for stable torque output and low speed ripple
- Excellent dynamic response and high positioning accuracy
- IP65 dust and water splash protection for harsh industrial environments
- Natural cooling for energy efficiency and reliable long-term operation
- Plug-and-play setup with simple tuning for quick commissioning
- Compatible with SINAMICS V90 drives for seamless integration
Applications
Widely used in packaging machinery, material handling, metal forming, printing machines, winders and unwinders, and other applications requiring stable and precise motion control.
