Product Overview

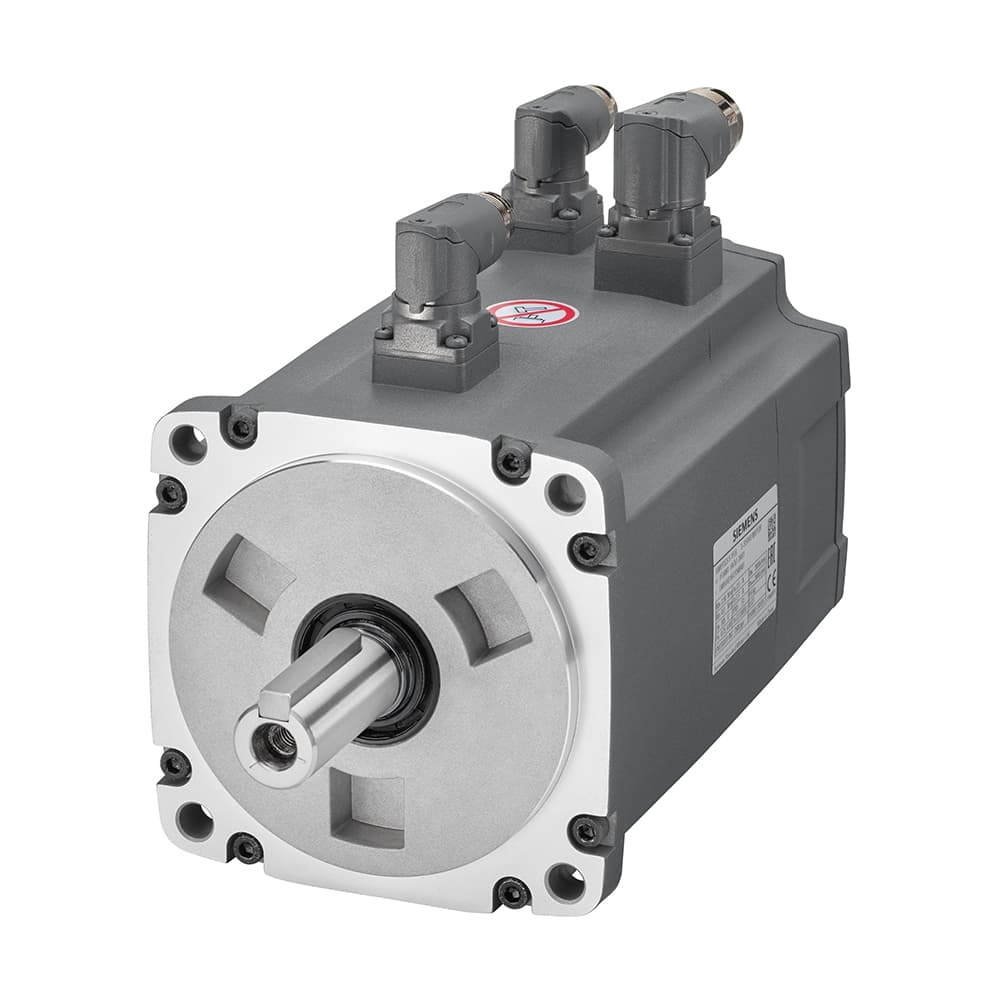

The 1FL6066-1AC61-2AA1 is a high-inertia servo motor from Siemens SIMOTICS S-1FL6 series, perfectly matched with SINAMICS V90 400V servo drives. It features 1.75kW rated power, 400V 3-phase input, 2000rpm rated speed and 8.36Nm rated torque, with high precision encoder and IP65 protection, suitable for stable and heavy-duty motion control applications.
Key Specifications
- Brand: Siemens
- Series: SIMOTICS S-1FL6
- Model: 1FL6066-1AC61-2AA1
- Rated Power: 1.75kW
- Voltage: 400V AC 3-phase
- Rated Speed: 2000rpm
- Max Speed: 4000rpm
- Rated Torque: 8.36Nm
- Max Torque: 25.1Nm
- Encoder: Incremental 2500ppr
- Holding Brake: No
- Inertia Type: High Inertia
- Protection Class: IP65
- Cooling: Natural cooling
- Shaft: Key shaft
- Weight: 11.1kg
- Matching Drive: SINAMICS V90 (400V series)
Features & Benefits
- High inertia design for smooth operation and strong anti-interference ability
- Stable torque output and excellent speed stability
- IP65 protection against dust and water splashes
- Compact structure, easy installation and wiring
- Perfect matching with Siemens V90 400V servo drives
- Reliable performance for long-term continuous operation
Applications
Widely used in packaging machinery, material handling, cutting machines, rotary tables, conveyor systems and other applications requiring stable and reliable motion control.
