Product Overview

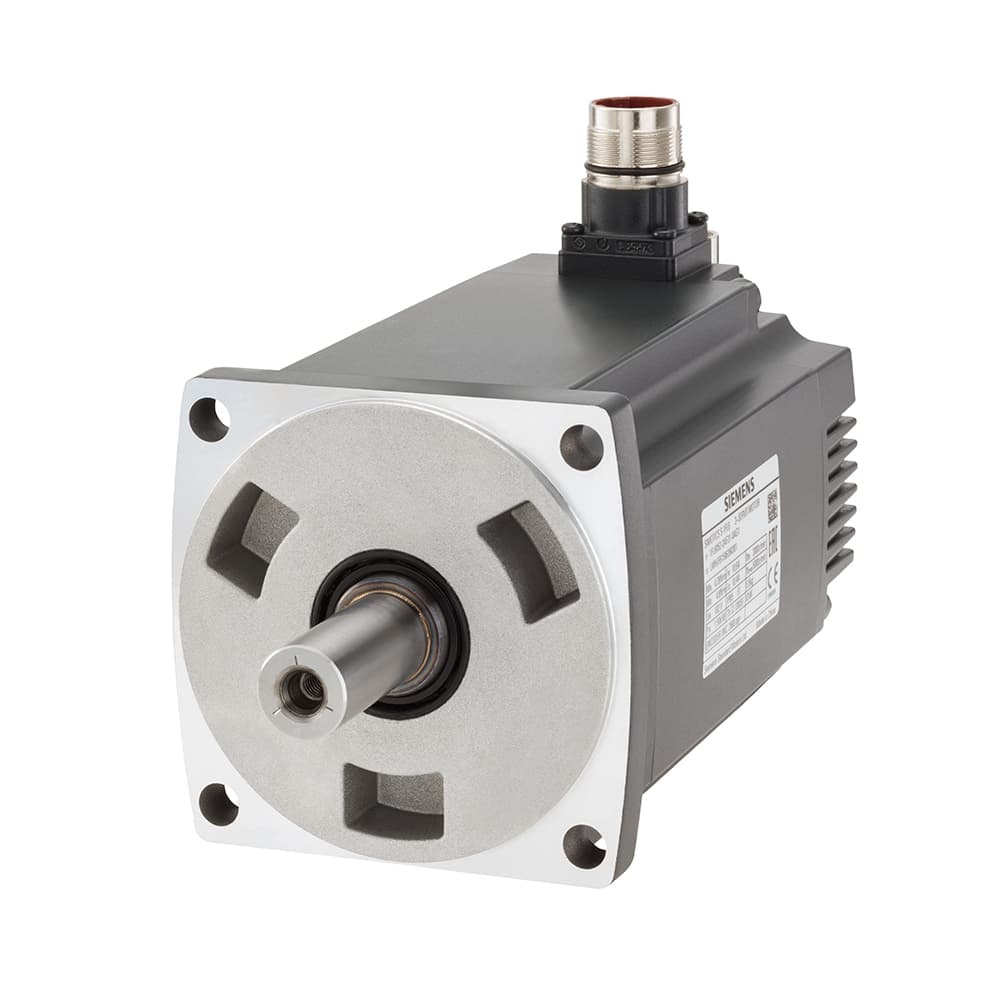

The 1FL6052-2AF21-2AA1 is a low-inertia servo motor from Siemens SIMOTICS S-1FL6 series, perfectly matched with SINAMICS V90 servo drives. It features 1.5kW rated power, 230V 3-phase input, 3000rpm rated speed and 4.8Nm rated torque, with high precision encoder and IP65 protection, suitable for medium-power precision automation equipment.
Key Specifications
- Brand: Siemens
- Series: SIMOTICS S-1FL6
- Model: 1FL6052-2AF21-2AA1
- Rated Power: 1.5kW
- Voltage: 230V AC 3-phase
- Rated Speed: 3000rpm
- Max Speed: 5000rpm
- Rated Torque: 4.8Nm
- Max Torque: 14.4Nm
- Encoder: Incremental 2500ppr
- Holding Brake: No
- Inertia Type: Low Inertia
- Protection Class: IP65
- Cooling: Natural cooling
- Shaft: Key shaft
- Weight: 2.6kg
- Matching Drive: SINAMICS V90
Features & Benefits
- Low inertia design for fast dynamic response and high positioning accuracy
- Strong overload capacity and stable torque output
- IP65 protection against dust and water splashes
- Compact structure, easy installation and wiring
- Perfect matching with Siemens V90 series servo drives
- Reliable performance for long-term continuous operation
Applications
Widely used in packaging machinery, labeling machines, electronic assembly, material handling, cutting machines, rotary tables, woodworking machinery and other medium-power automation equipment.
