Product Overview

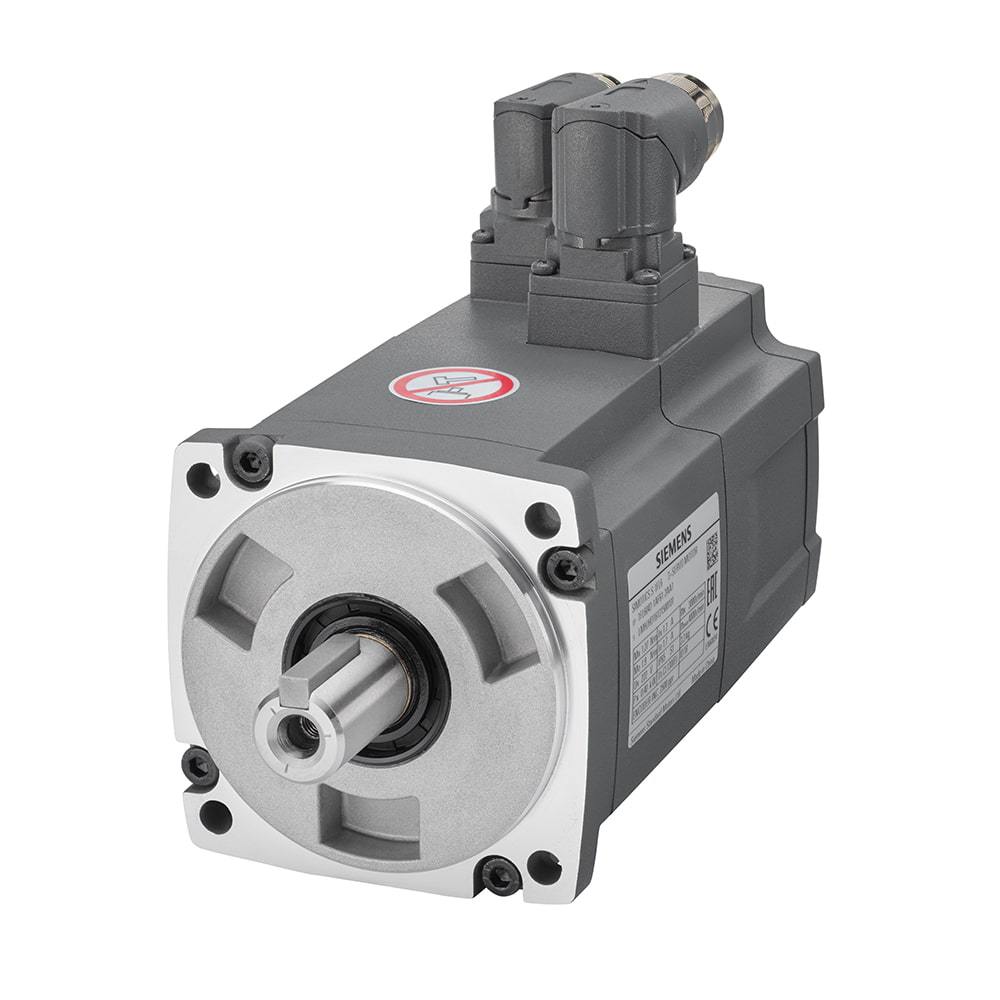

The 1FL6042-1AF61-2AA1 is a low-inertia servo motor from Siemens SIMOTICS S-1FL6 series, perfectly matched with SINAMICS V90 400V servo drives. It features 0.75kW rated power, 400V 3-phase input, 3000rpm rated speed and 2.4Nm rated torque, with high precision encoder and IP65 protection, suitable for medium-power automation equipment.
Key Specifications
- Brand: Siemens
- Series: SIMOTICS S-1FL6
- Model: 1FL6042-1AF61-2AA1
- Rated Power: 0.75kW
- Voltage: 400V AC 3-phase
- Rated Speed: 3000rpm
- Max Speed: 5000rpm
- Rated Torque: 2.4Nm
- Max Torque: 7.2Nm
- Encoder: Incremental 2500ppr
- Holding Brake: No
- Inertia Type: Low Inertia
- Protection Class: IP65
- Cooling: Natural cooling
- Shaft: Key shaft
- Weight: 1.6kg
- Matching Drive: SINAMICS V90 (400V series)
Features & Benefits
- Low inertia for fast dynamic response and high positioning accuracy
- Stable torque output and strong overload capacity
- IP65 protection against dust and water splashes
- Compact structure, easy installation and wiring
- Perfect matching with Siemens V90 400V servo drives
- Reliable performance for long-term continuous operation
Applications
Widely used in packaging machinery, labeling machines, electronic assembly, material handling, cutting machines, rotary tables and other medium-power automation equipment.
