Product Overview

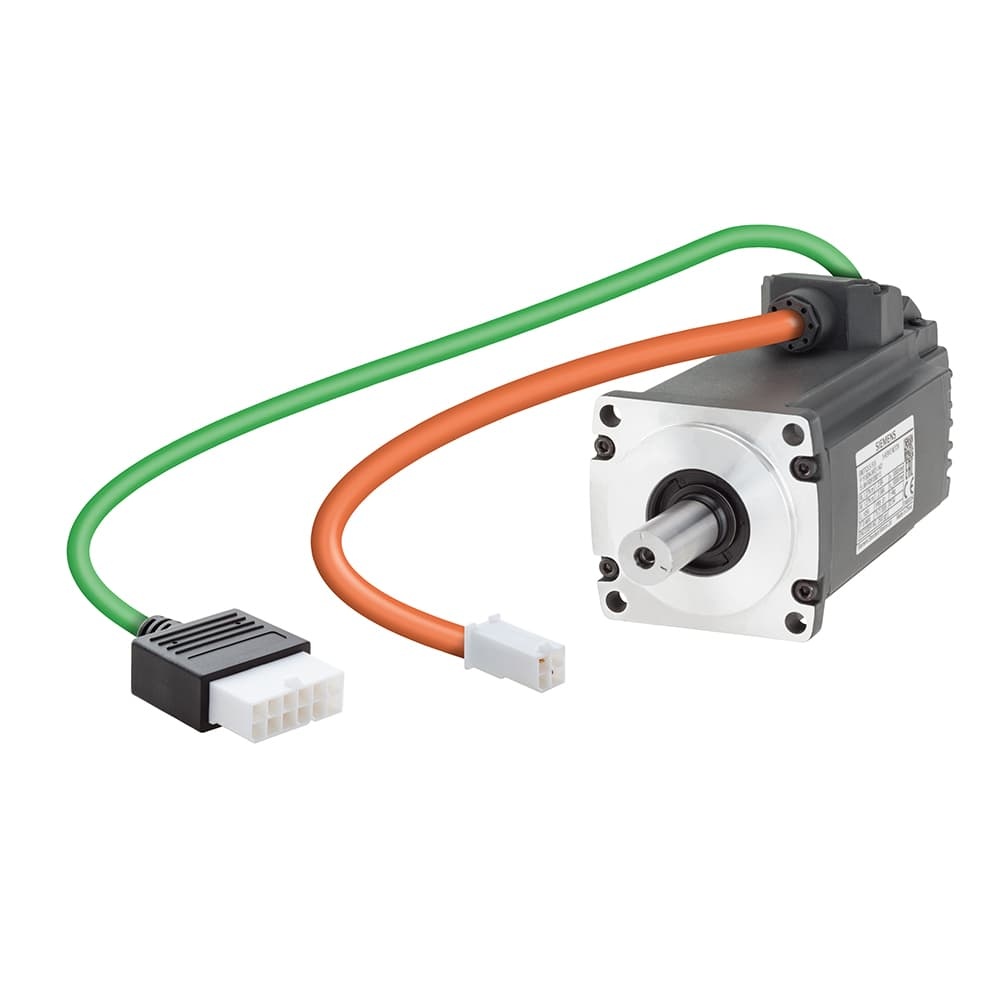

The 1FL6032-2AF21-1AA1 is a low-inertia servo motor from Siemens SIMOTICS S-1FL6 series, specially designed for SINAMICS V90 servo drives. It features 0.2kW rated power, 230V 3-phase input, 3000rpm rated speed and 0.64Nm rated torque, with high precision incremental encoder and IP65 protection, suitable for small precision automation equipment.
Key Specifications
- Brand: Siemens
- Series: SIMOTICS S-1FL6
- Model: 1FL6032-2AF21-1AA1
- Rated Power: 0.2kW
- Voltage: 230V AC 3-phase
- Rated Speed: 3000rpm
- Max Speed: 5000rpm
- Rated Torque: 0.64Nm
- Max Torque: 1.92Nm
- Encoder: Incremental 2500ppr
- Holding Brake: No
- Inertia Type: Low Inertia
- Protection Class: IP65
- Cooling: Natural cooling
- Shaft: Key shaft
- Weight: 0.75kg
- Matching Drive: SINAMICS V90
Features & Benefits
- Low inertia structure for fast dynamic response and high positioning accuracy
- Stable and reliable, suitable for continuous high-speed operation
- IP65 protection against dust and water splashes
- Compact size and light weight for easy installation
- Perfect matching with Siemens V90 series servo drives
- Wide application in small automation machines
Applications
Widely used in small packaging machines, labeling machines, electronic assembly equipment, 3C manufacturing, precision positioning platforms, handling robots and other small automation equipment.
