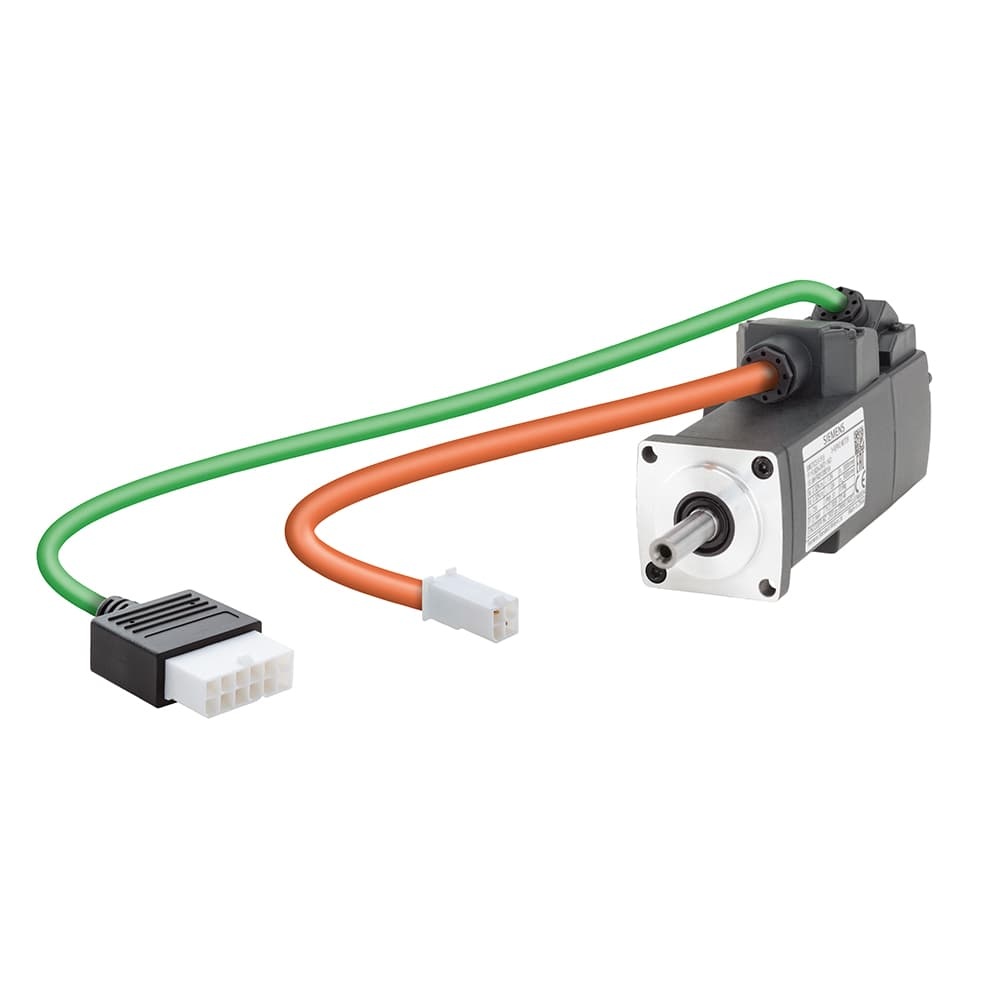

1FL6024-2AF21-1AA1 Siemens SIMOTICS S-1FL6 Low Inertia Servo Motor
Product Overview
The 1FL6024-2AF21-1AA1 is a low-inertia permanent magnet synchronous servo motor from Siemens SIMOTICS S-1FL6 series, perfectly matched with SINAMICS V90 servo drives. It features 0.1kW rated power, 230V 3-phase AC input, 3000rpm rated speed, 0.32Nm rated torque, and a 2500ppr TTL incremental encoder. With IP65 protection, natural cooling, and compact design, it delivers excellent dynamic response and positioning accuracy for small-scale high-precision automation applications.
Key Specifications
- Brand: Siemens
- Series: SIMOTICS S-1FL6 (V90 Matching)
- Model: 1FL6024-2AF21-1AA1
- Motor Type: Permanent Magnet Synchronous Motor (PMSM)
- Inertia Type: Low Inertia (LI)
- Rated Power: 0.1kW (0.14hp)
- Input Voltage: 230V AC, 3-phase
- Rated Speed: 3000rpm
- Max Speed: 5000rpm
- Rated Torque: 0.32Nm
- Max Torque: 0.96Nm
- Rated Current: 1.2A
- Max Current: 3.6A
- Encoder: Incremental Encoder, TTL, 2500ppr (13bit)
- Holding Brake: No
- Shaft: Feather key, Tolerance N
- Shaft Height: 20mm
- Protection Class: IP65 (with sealing ring)
- Cooling: Natural cooling
- Thermal Class: B (130°C)
- Moment of Inertia: 0.052 kg·cm²
- Weight: 0.6kg (net) / 0.63kg (approx.)
- Ambient Temp: 0–40°C
- Humidity: ≤90% RH (no condensation)
- Compliance: CE, EAC
Features & Benefits
- Low inertia design for ultra-fast acceleration/deceleration and high dynamic response, ideal for short-stroke, high-frequency motion tasks.
- High-precision 2500ppr incremental encoder ensures accurate position and speed feedback for reliable motion control.
- IP65 protection rating with sealing ring, resistant to dust and water splashes, suitable for harsh industrial environments.
- Natural cooling for maintenance-free operation and long service life.
- Compact, lightweight (0.6kg) design for easy installation and space saving in control cabinets.
- Perfect compatibility with Siemens SINAMICS V90 servo drives for seamless system integration.
- Feather key shaft for secure mechanical connection and stable torque transmission.
- Comprehensive electrical protection (overload, overvoltage, over-temperature) for reliable long-term operation.
Applications
Widely used in small packaging machinery, electronic assembly equipment, semiconductor handling, 3C manufacturing, precision instruments, small robots, labeling machines, and other high-dynamic, high-precision small-scale industrial automation applications.
